FireChief

FireChief Automatic Dry Powder Fire Extinguisher

The Firechief Automatic Dry Powder Fire Extinguisher range is available in 1kg, 2kg, 6kg, 10kg and 12kg capacities, making it easy to choose the right level of protection for different applications. Designed for automatic operation, each extinguisher activates when the surrounding temperature reaches 68°C, releasing dry powder without the need for manual intervention. Commonly installed in engine compartments, boats, commercial vehicles, plant and machinery, these extinguishers are suitable for Class A, B and C fires, as well as fires involving live electrical equipment. Complete with a hanging bracket and integrated pressure gauge, the Firechief range provides a practical solution for protecting enclosed spaces where a fire could develop unnoticed.

Available options (5)

1kg AU001/016
2kg AU001/017
6kg AU001/051
10kg AU001/015
12kg AU001/052
Overview

The Firechief Automatic Dry Powder Fire Extinguisher provides automatic fire suppression for enclosed spaces where a fire may not be discovered straight away. It is suitable for use on Class A, B and C fires and can also be used on live electrical equipment.

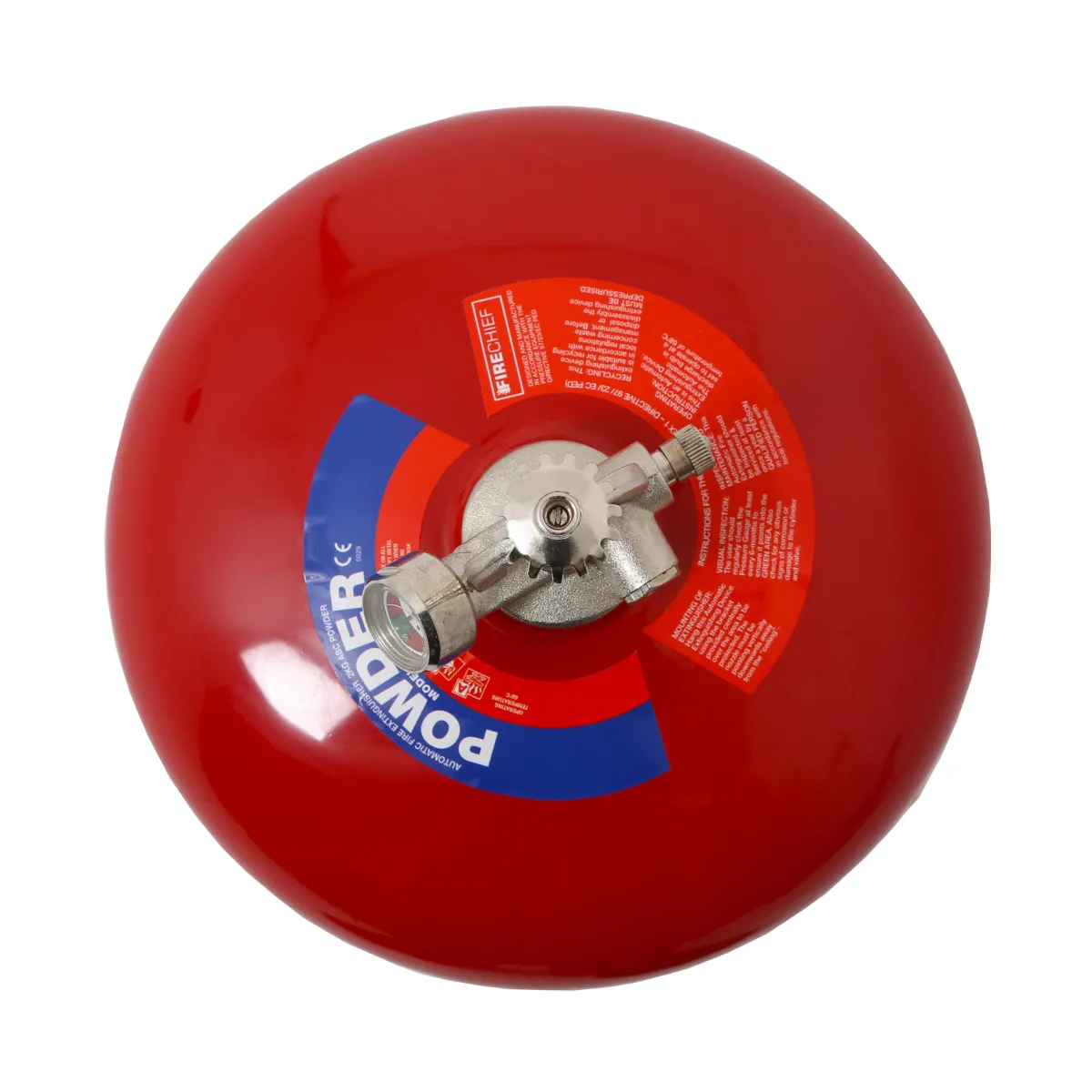

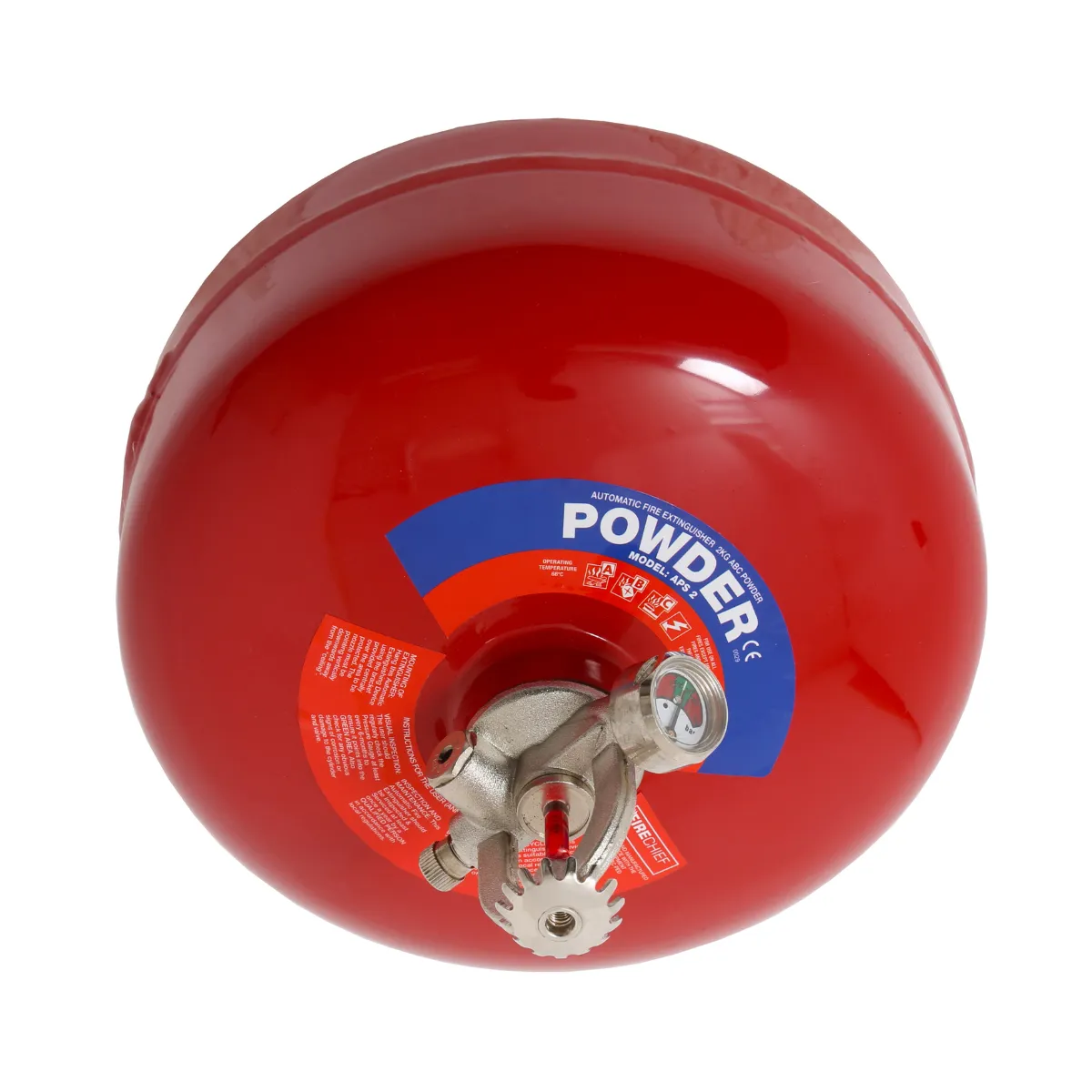

A common application is the engine compartment of boats, commercial vehicles and other machinery. Once the surrounding temperature reaches 68°C, the heat-sensitive glass bulb ruptures, automatically releasing the dry powder extinguishing agent. The sprinkler-style discharge head is designed to spread the powder throughout the protected compartment.

This type of extinguisher is often chosen for enclosed areas with little or no regular occupancy, where relying on someone to spot a fire quickly may not be practical. To achieve the intended level of protection, each compartment should be fitted with its own automatic extinguisher.

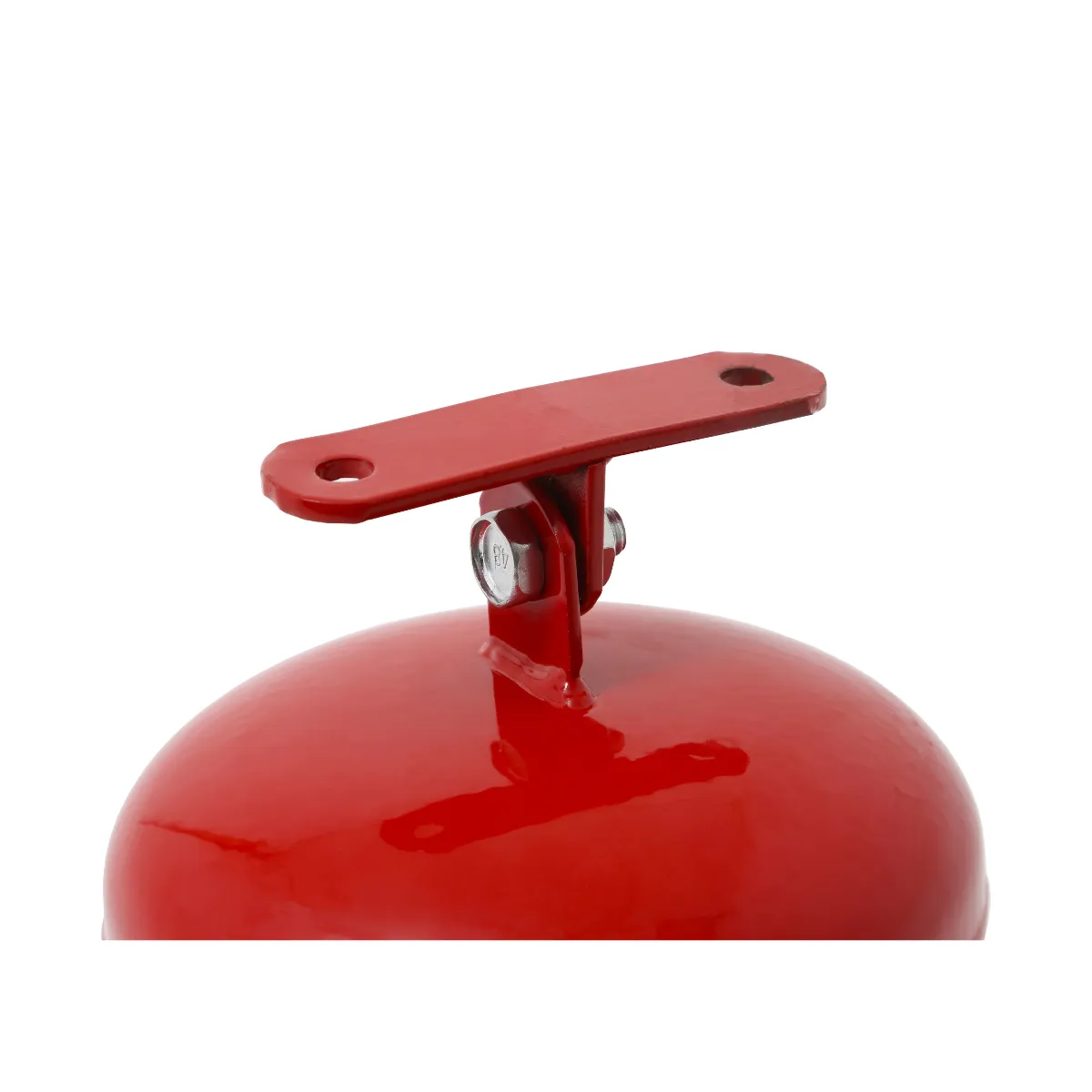

Routine visual checks are simple thanks to the integrated pressure gauge, while the supplied hanging bracket allows the unit to be mounted overhead within the protected space.

Looking for a Complete Automatic Fire Suppression System?

Alongside individual automatic extinguishers, we also supply complete automatic fire suppression systems for vehicles, plant, machinery and other specialist applications. If you're unsure which system is right for your requirements, our team can help. Call us on 01332 366721 or get in touch using our online enquiry form to discuss your project.

Features
  • UKCA/CE approved

  • Ideal for A, B and C type fires

  • Fitted with a 68-degree red bulb

  • Stored pressure

  • Designed for enclosed areas such as engine/plant rooms

  • Pressure gauge for easy routine checking

  • Hanging bracket included

  • 5-year warranty

Technical data

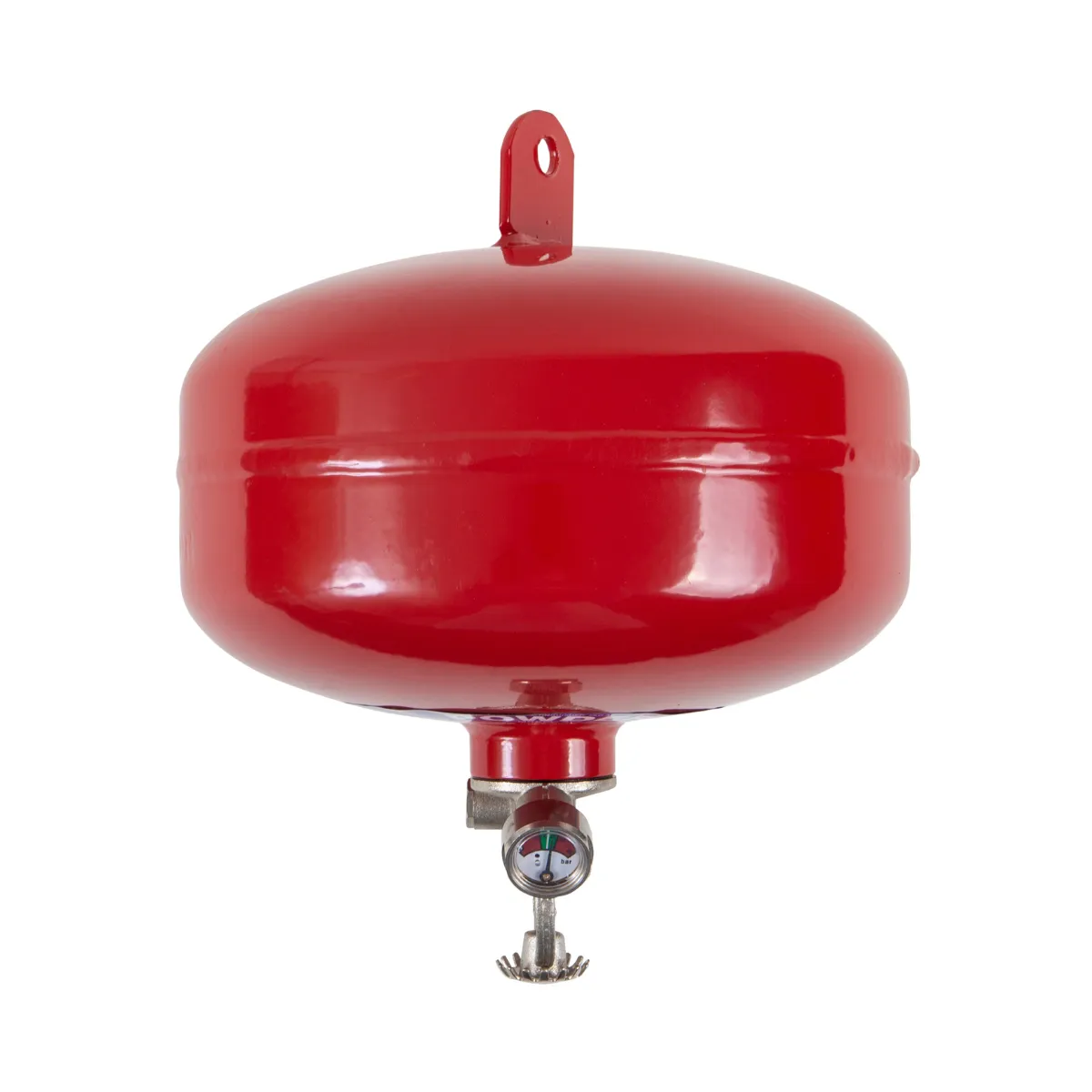

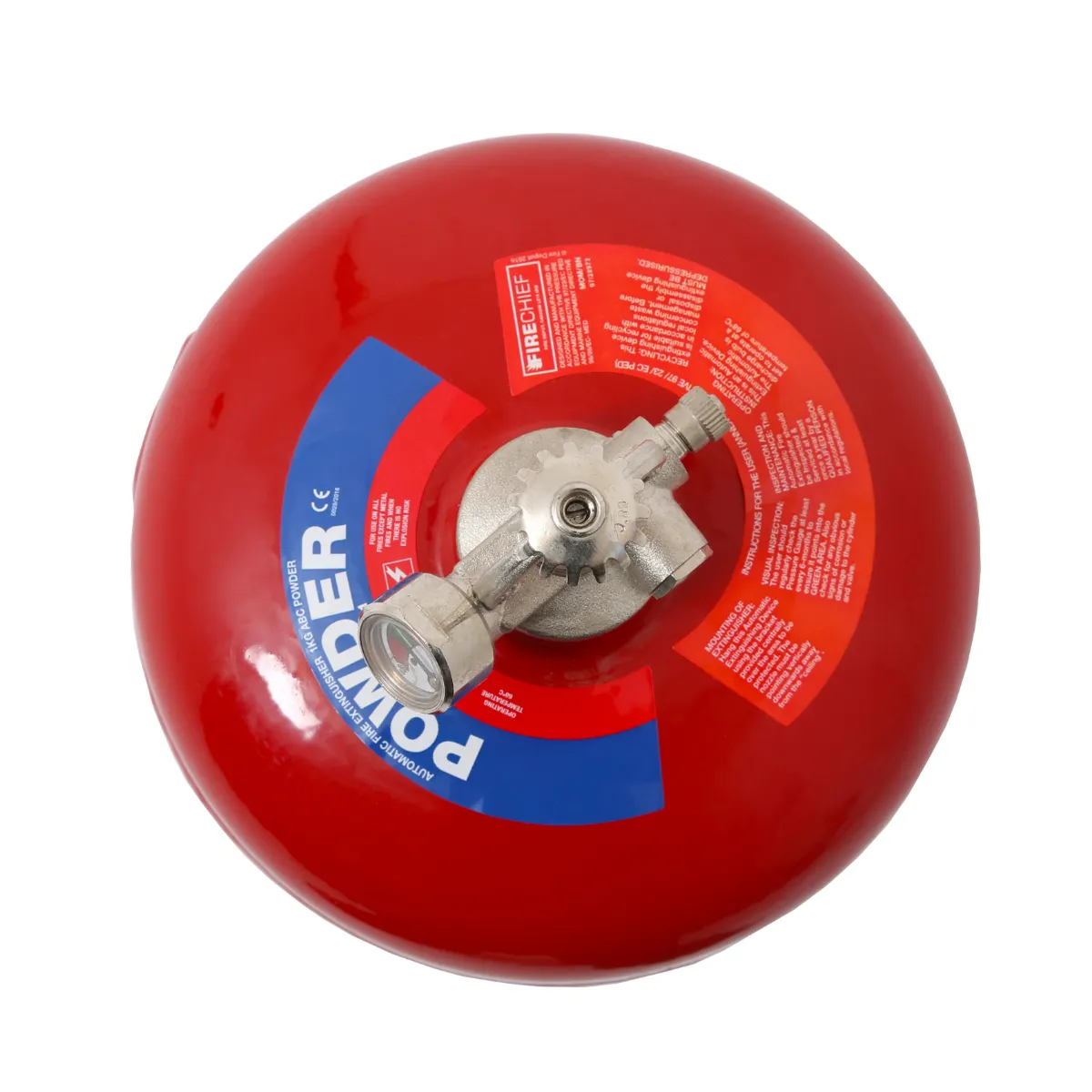

FireChief Automatic 1kg Dry Powder Fire Extinguisher

Capacity

1kg (APS1)

Diameter

160mm

Extinguisher medium

ABC Powder

Weight*

2.2kg

Temperature range

-30°C - +60°C

Carton height

270mm

Working pressure

15 bar

Carton length

170mm

Maximum area covered

1m²

Carton width

100mm

Bulb release temperature

68°C

Packaged weight**

2.5kg

Height

90mm

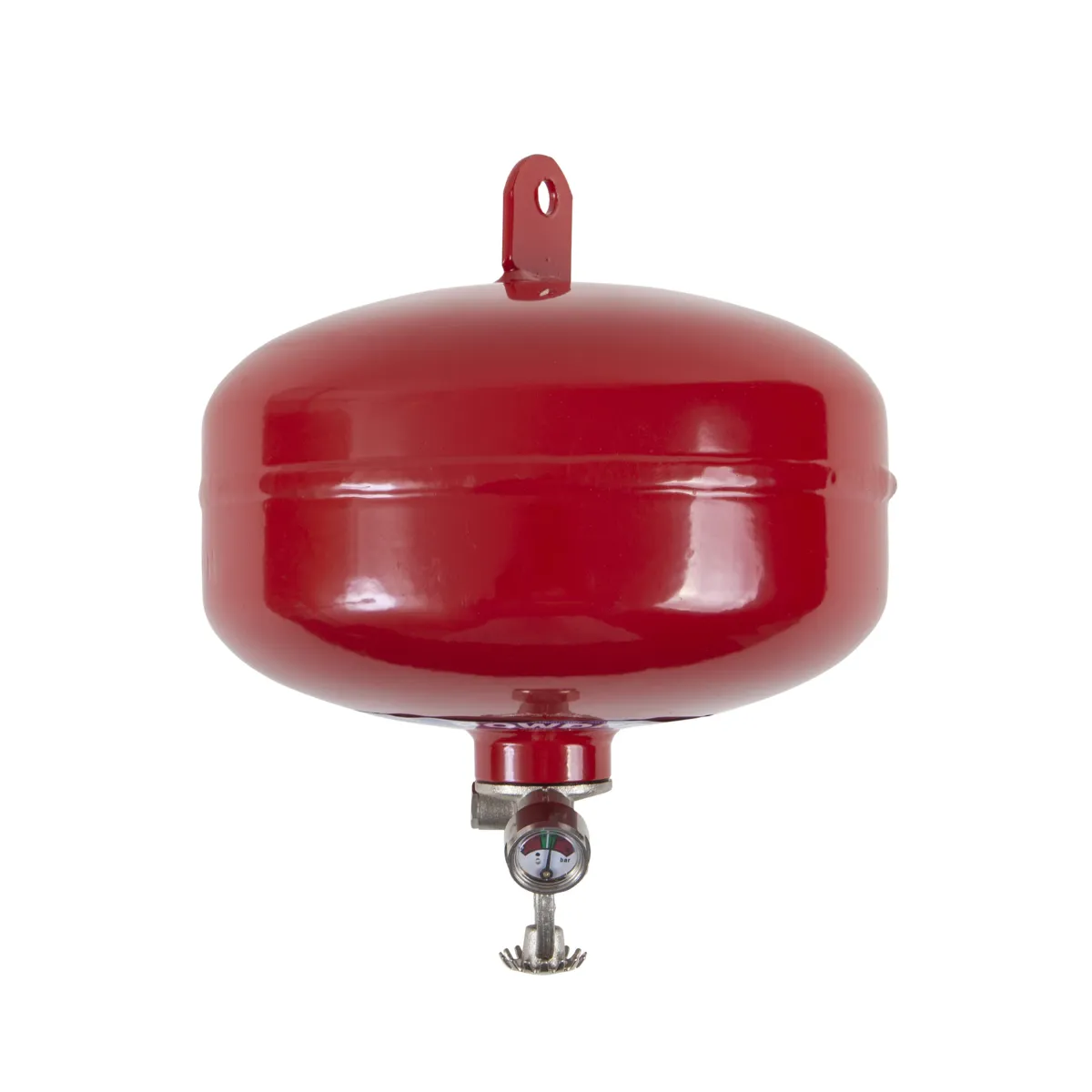

FireChief Automatic 2kg Dry Powder Fire Extinguisher

Capacity

2kg (APS2)

Diameter

190mm

Extinguisher medium

ABC Powder

Weight*

5.5kg

Temperature range

-30°C - +60°C

Carton height

270mm

Working pressure

15 bar

Carton length

190mm

Maximum area covered

2m²

Carton width

260mm

Bulb release temperature

68°C

Packaged weight**

5.8kg

Height

123mm

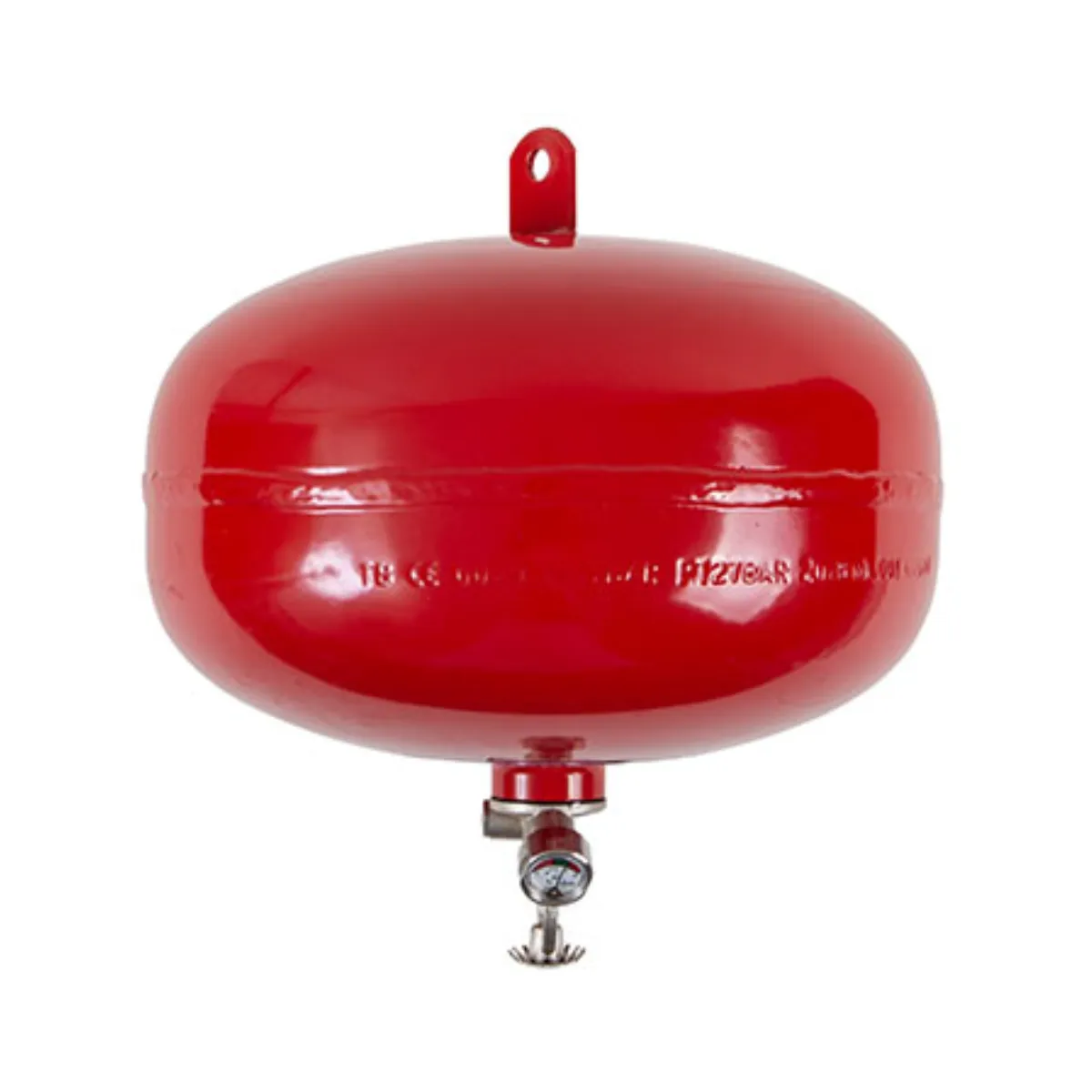

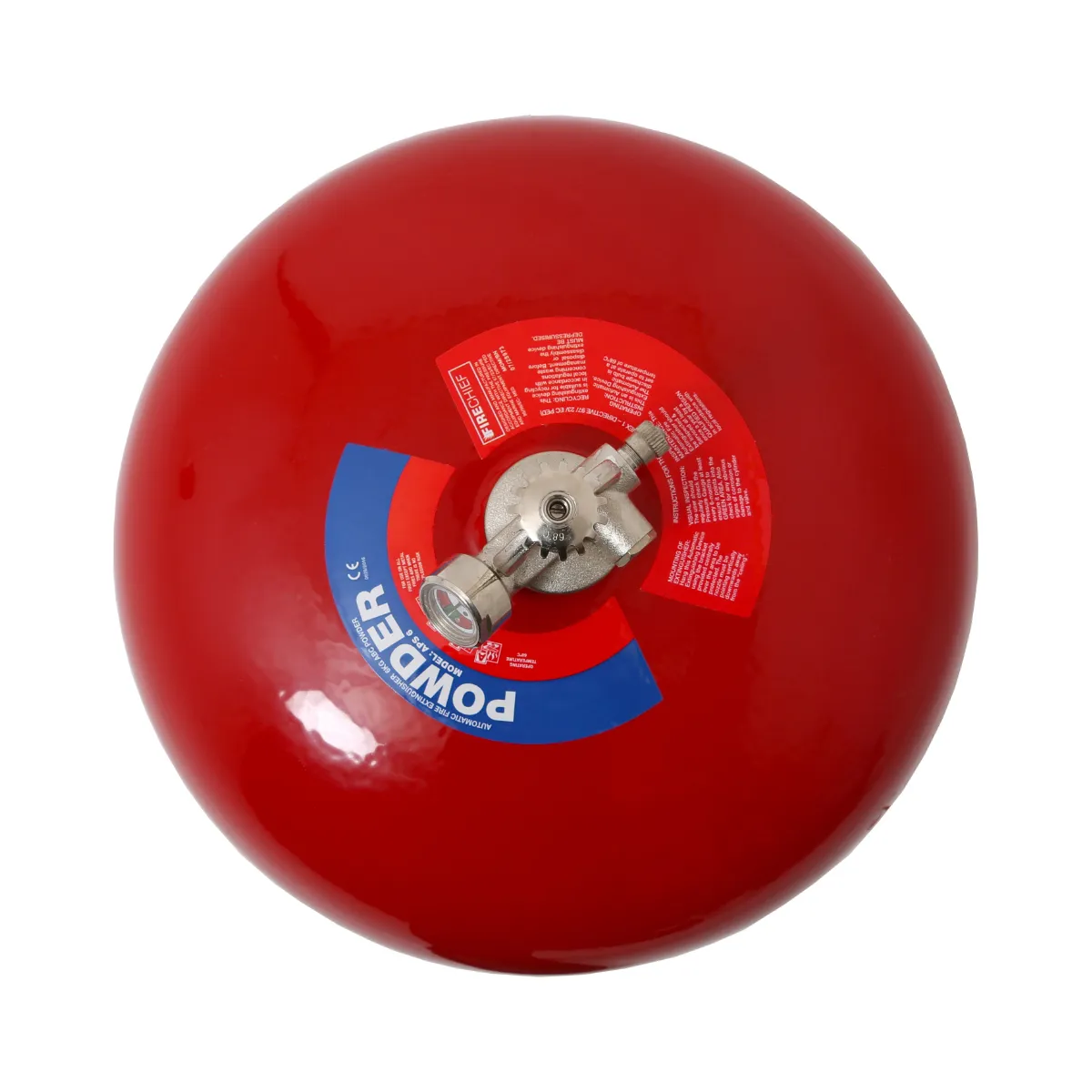

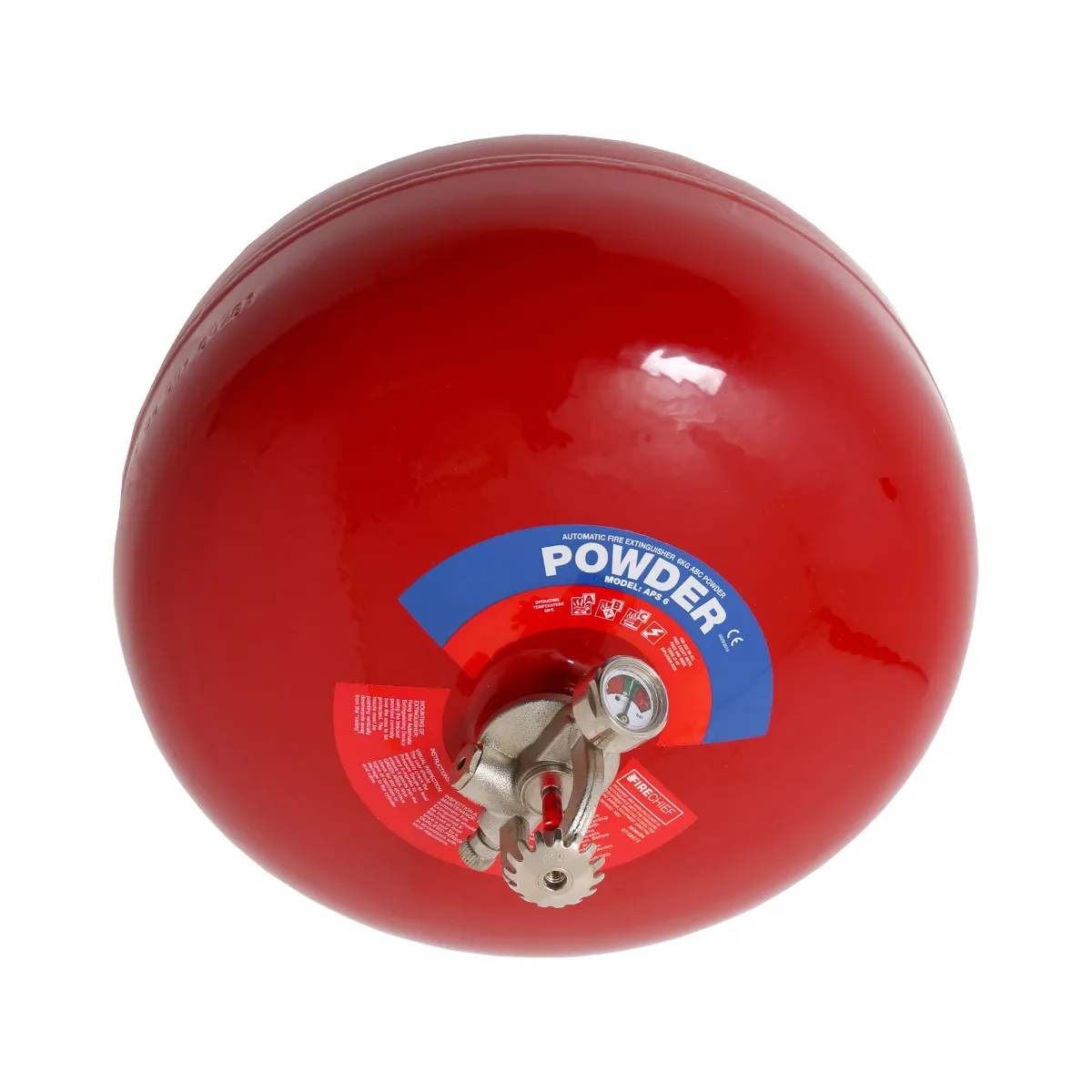

FireChief Automatic 6kg Dry Powder Fire Extinguisher

Capacity

6kg (APS6)

Diameter

250mm

Extinguisher medium

ABC Powder

Weight*

8.2kg

Temperature range

-30°C - +60°C

Carton height

360mm

Working pressure

15 bar

Carton length

260mm

Maximum area covered

6m²

Carton width

260mm

Bulb release temperature

68°C

Packaged weight**

8.5kg

Height

180mm

FireChief Automatic 10kg Dry Powder Fire Extinguisher

Capacity

10kg (APS10)

Diameter

270mm

Extinguisher medium

ABC Powder

Weight*

14.0kg

Temperature range

-30°C - +60°C

Carton height

425mm

Working pressure

15 bar

Carton length

275mm

Maximum area covered

10m²

Carton width

275mm

Bulb release temperature

68°C

Packaged weight**

14.4kg

Height

215mm

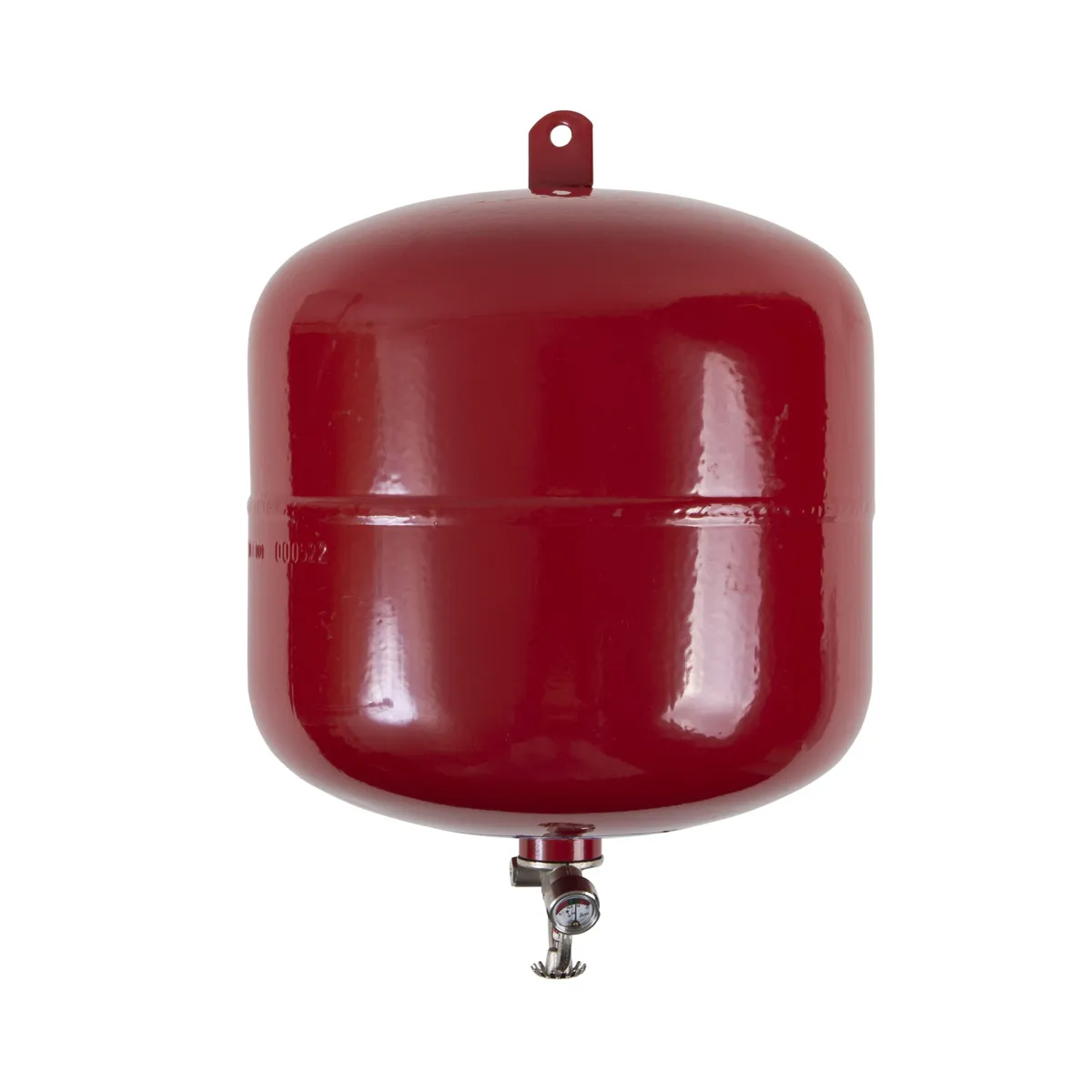

FireChief Automatic 12kg Dry Powder Fire Extinguisher

Capacity

12kg (APS12)

Diameter

270mm

Extinguisher medium

ABC Powder

Weight*

16.1kg

Temperature range

-30°C - +60°C

Carton height

465mm

Working pressure

15 bar

Carton length

275mm

Maximum area covered

12m²

Carton width

275mm

Bulb release temperature

68°C

Packaged weight**

16.4kg

Height

270mm

Frequently asked questions

The Firechief Automatic Dry Powder Fire Extinguisher is fitted with a heat-sensitive red glass bulb. When the surrounding temperature reaches 68°C, the bulb bursts and the extinguisher automatically releases the ABC dry powder extinguishing agent.

This range is intended for enclosed areas where automatic fire protection is required. The manufacturer lists applications such as engine rooms, plant rooms and switch rooms. The recommended mounting height varies by model, with the 1kg and 2kg units installed 1.5 metres above the risk, while the 6kg, 10kg and 12kg models are recommended for installation at 2 metres above the protected area.
